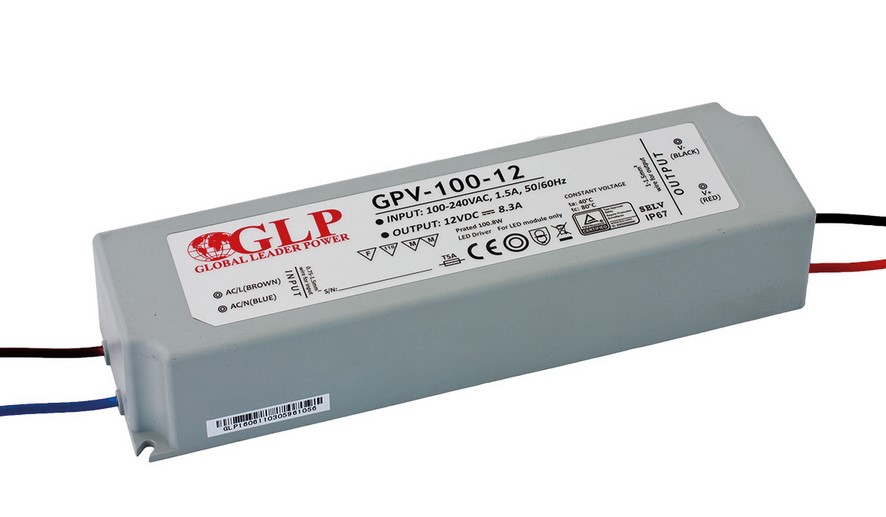

GLP 12v Power Supply Waterproof - 100w

The waterproof (IP67 ranked) Global Leader Power GPV series power supplies are suitable to be used in many even most demanding applications.

Their key features are small dimensions, lightweight and easy installation from user point of view, but most importantly they meet lighting norms like EN55015 and are TÜV certified to confirm the high quality.

See links to Data Sheets Below

Links to Data Sheet PDF files.

GPV-100-12

INSTRUCTION MANUAL

Dimensions:

100w - 187 × 52 × 37 mm

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF i 47μF parallel capacitor.
3. Tolerance includes set up tolerance, line regulation and load regulation.
4. Setup and rise time is measured from 0 to 90% rated output voltage.
5. Suitable for indoor or outdoor use. Please avoid direct exposure to sunlight and immersion in water for over 30 minutes.
6. Power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment must be re-qualify to comply with EMC Directives.
