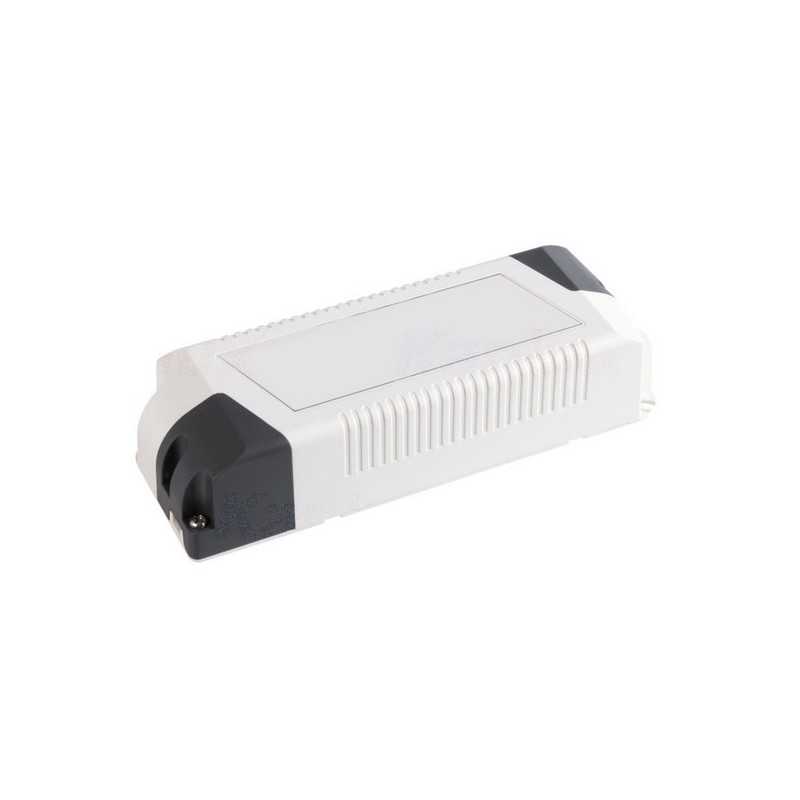

POWELED P 12V 60W

Kanlux POWELED is a 60w electronic constant-voltage power supply
unit. It is used for powering LED strips and DC12v applications

GENERAL DATA:

Colour: white
Place of application: Indoors
Possibility of installation on a normally flammable
surface: yes
Length [mm]: 157
Width [mm]: 54
Height [mm]: 36

TECHNICAL DATA:

Rated voltage [V]: 220-240 AC
Rated frequency [Hz]: 50/60
Maximum power [W]: 0-60
Class of protection against electric shock: II
Material: plastic
Ambient temperature range to which the product can be
exposed: 5÷25
Connection type: Terminal block
Range of sections of wires used [mm²]: 0,5-1,5
Supply-cord type: constant-voltage
Short-circuit protection: yes
Maximum temperature Ta [°C]: 50
Input voltage - PRI [V]: 220-240
Output voltage - SEC [V]: 12 DC
Output current - sec [ma]: max 5000
IP class: 20
Tc [°C]: 85
