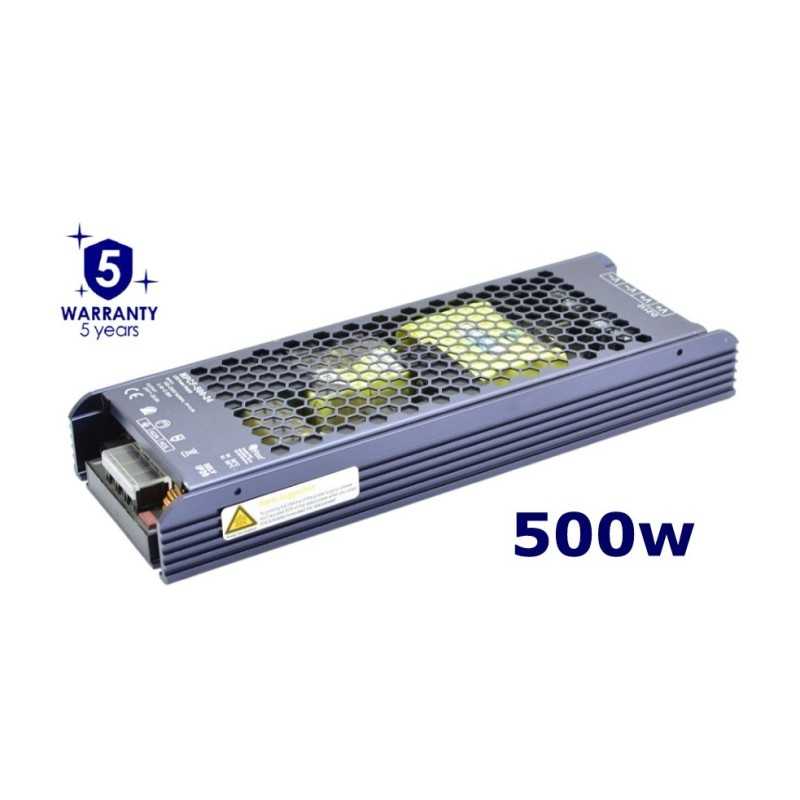

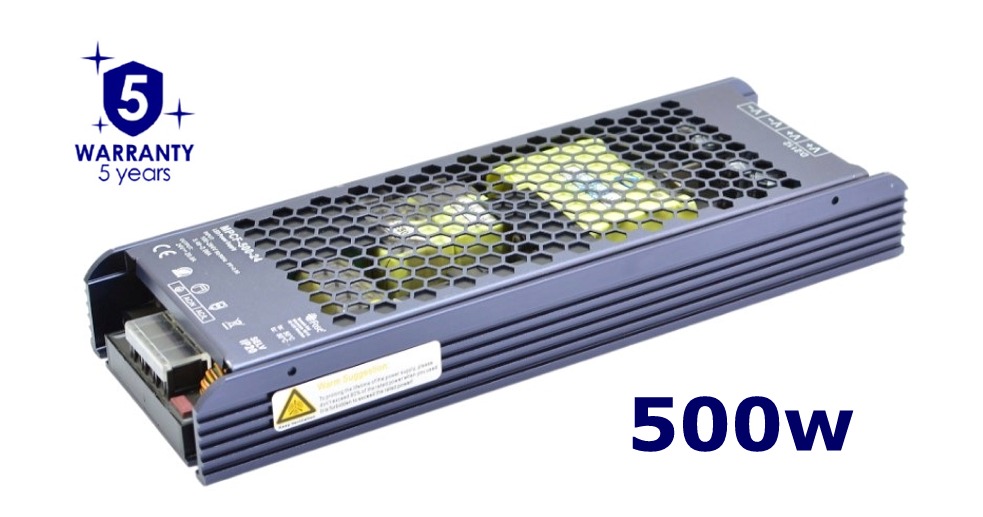

Constant Voltage Linear Power Supply PFC 24V 500W
Rating
Constant Voltage Linear Power Supply PFC 24V 500W
5 Year Warranty
FREE SHIPPING
Description
- Protections: short circuit, over current, over voltage, over temperature
- Cooling by free air convention
- Build in active PFC function, PF > 0.95
- Warranty 5 years
- Dimensions: 232mm - 81mm - 31mm
- Weight: 0.900kg
Specification
| Parameter | Value |
|---|---|
| Symbol | MPCF-500-24 |
| EAN13 | 5901289758390 |
| ETIM CLASS | DC-power supply |
| Rated supply voltage [V] | 100-277V AC 50/60Hz |
| Power output [W] | 500 |
| Output voltage | 24 |
| Max. output current [A] | 41.7 |
| Degree of protection | IP20 |
| Efficiency [%] | 93 |
| Housing | Metal housing |
| Protection class | I |
| Suitable for outdoor use | yes |
| Length [mm] | 232 |
| Width [mm] | 81 |
| Height/depth [mm] | 31 |
| Weight [kg] | 0.9 |
Product Details
MPCF-500-24
5901289758390
