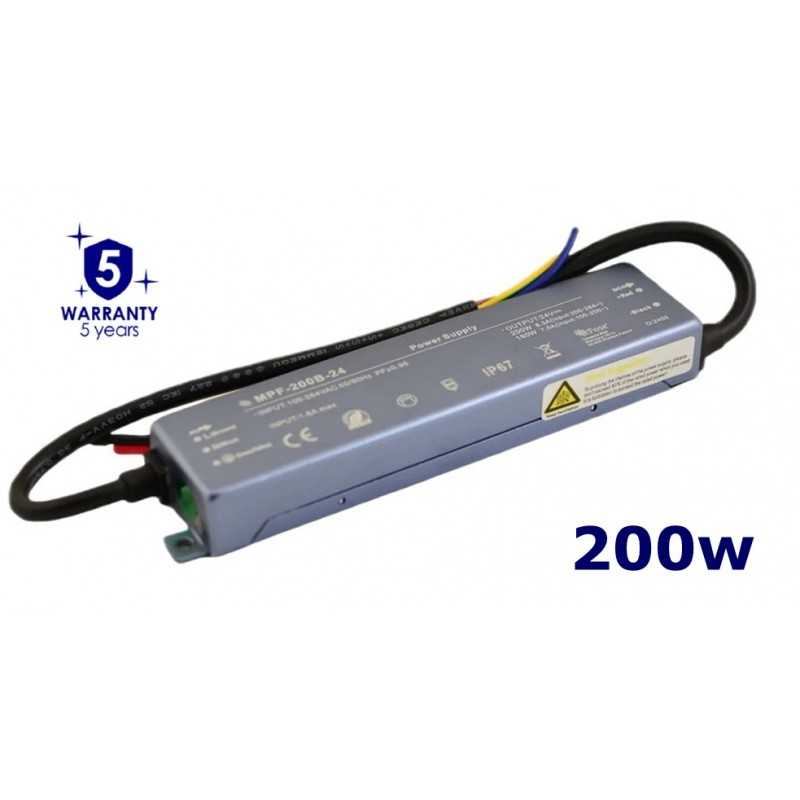

Constant Voltage Power Supply PFC IP67 24V 200W
Rating
Constant Voltage Power Supply PFC IP67 24V 200W
5 Year Warranty
Description
- P67 designed for indoor and outdoor use
- Protections: Short circuit, Overload, Over temperature
- Cooling by free air convection
- Built-in active PFC function, PF > 0.96
- Warranty 5 years
- Dimensions: 172mm - 37mm - 20mm
- Weight: 0.260kg
Specification
| Symbol | MPF-200B-24 |
| EAN13 | 5901289758826 |
| ETIM CLASS | DC-power supply |
| Rated supply voltage [V] | 100-264V AC 50/60Hz |
| Power output [W] | 200 |
| Output voltage | 24 |
| Max. output current [A] | 8.3 |
| Degree of protection | IP67 |
| Efficiency [%] | 93 |
| Housing | Encapsulated |
| Protection class | I |
| Suitable for outdoor use | yes |
| Length [mm] | 172 |
| Width [mm] | 37 |
| Height/depth [mm] | 20 |
| Weight [kg] | 0.26 |
Product Details
MPF-200B-24
5901289758826
